UFS 4.0 Protocol Analyzer





PGY-UFS4.0-PA, UFS Protocol Analyzer is the industry-first working and tested UFS4.0 Protocol Analyzer. It offers protocol data capture and debugging of data across MPHY, UniPro, and UFS protocol layers. It allows for instantaneous decoding of UFS, UniPro, and MPHY layers with the flexibility to correlate decoded data across these protocol layers. PGY-UFS4.0-PA supports PWMG1 to HSG5B data rates and two TX, and two RX lane decode. The active probe has minimum electrical loading on the device under test (DUT) and captures protocol data without affecting the performance of DUT. PGY-UFS4.0- PA Protocol Analyzer supports two-lane data. Comprehensive on the fly decoding of UniPro & UFS data enables validation of communication between UFS host and device.

PGY-UFS4.0-PA Protocol Analyzer allows Design and Test Engineers to obtain deep insight into UFS host and device communication. MPHY/UniPRO/UFS packet-based triggering allows specific protocol data capture and analysis. PGY-UFS Protocol analyzer instantaneously provides decoding of UFS, UniPro, and MPHY layers with a correlation to MPHY, UniPro, and UFS layers.

PD Power Delivery (CC) Protocol Analysis Software Datasheet

Key features

  • PD (CC signal) protocol Analysis using oscilloscope live channel data or stored PD signals
  • Displays the decoded data in PD frame format
  • Decoding of each packet’s bit values
  • Detail view displays each packet info in more detail
  • Easily correlate PD (CC) protocol info to Vbus status
  • Easily correlate CC line info to USB/Displayport traffic
  • Timestamp for each packet
  • Long duration data decode support to capture more number of PD protocol transactions
  • Search capabilities to locate protocol event
  • Documentation by exporting data in CSV and TXT file format
  • Report Generation

Easy PD Protocol Test Setup and Debug:

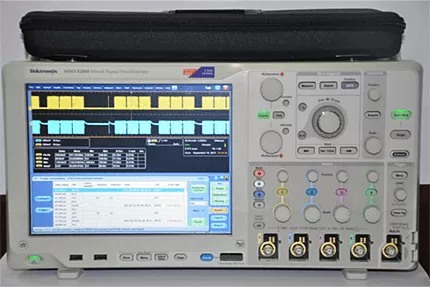

PGY-PD Software installed in Tektronix oscilloscopes can be launched by clicking on the PGY-PD icon in the oscilloscope desktop folder. Now the user has simultaneous view and control of the oscilloscope as well as PGY-PD Software. Users can analyze PD in single acquisition mode, Repetitive mode, and as well as No Acq mode. In No Acq Mode, PD software analyses already captured PD signal that is present in the acquisition memory of the oscilloscope.

Key Specifications
