100G 802.3_2015 BERT and Analyzer

Presentation

Application Notes

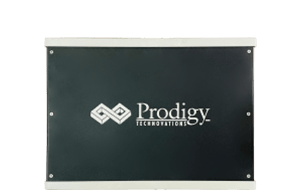

PGY-100G-802.3_2015 BERT and Analyzer is the instrument that enables the design and test engineers to test the 100G Ethernet interface for its BER by configuring PGY-100G as 100G 802.3 traffic generator with error injection and error correction capability in real-time to validate the overall performance of the interface.

Key features

  • Fully Compliant to IEEE802.3bm – 2015 Standard
  • Flexibility to transmit Fixed, PRBS, and Incremental pattern
  • Reed Solomon Encoder, Decoder as per standard
  • Random and Burst Error injection. The error rate is programmable
  •  Error injection in RS Layer and PCS after RS encoder
  • Transmit and Receive Statistics include RMON and extensive error counts
  • Option to bypass scrambling, RS encoder
  • Real-time Transmitter and Receiver throughput display with a programmable frame rate
  • Fixed frame sizes from 64 bytes to 9600 bytes or Random Size.

Products Specifications

Fixed Payload Patterns

Fixed Data Pattern

Variable Payload Pattern

PRBS31; PRBS15; Incremental Pattern

Interface

CFP (Two Ports) upgradable to 4 ports
