PGY-UFS4.0-PA, UFS Protocol Analyzer is the industry-first working and tested UFS4.0 Protocol Analyzer. It offers protocol data capture and debugging of data across MPHY, UniPro, and UFS protocol layers. It allows for instantaneous decoding of UFS, UniPro, and MPHY layers with the flexibility to correlate decoded data across these protocol layers. PGY-UFS4.0-PA supports PWMG1 to HSG5B data rates and two TX, and two RX lane decode. The active probe has minimum electrical loading on the device under test (DUT) and captures protocol data without affecting the performance of DUT. PGY-UFS4.0- PA Protocol Analyzer supports two-lane data. Comprehensive on the fly decoding of UniPro & UFS data enables validation of communication between UFS host and device.

PGY-UFS4.0-PA Protocol Analyzer allows Design and Test Engineers to obtain deep insight into UFS host and device communication. MPHY/UniPRO/UFS packet-based triggering allows specific protocol data capture and analysis. PGY-UFS Protocol analyzer instantaneously provides decoding of UFS, UniPro, and MPHY layers with a correlation to MPHY, UniPro, and UFS layers.

JTAG IEEE 1149.1 - JTAG Protocol Decode Software Datasheet

Key features

  • JTAG Protocol Analysis using Tektronix oscilloscope live analog and digital channel data and saved files

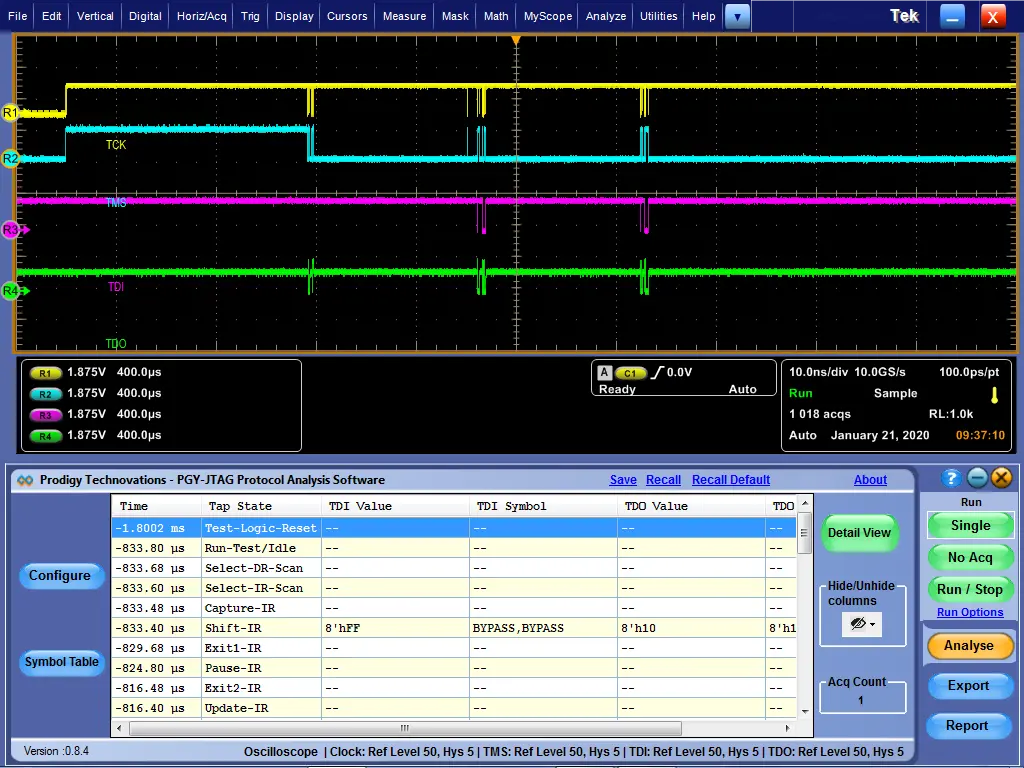

  • Displays the decoded data in JTAG state format
  • Protocol decode using digital channel data allows the use of analog channels to probe different test points for correlating the analog signals and JTAG protocol activity
  • Link the JTAG Protocol packet to the waveform in the oscilloscope display
  • Displays the IR opcode and DR name for easy interpretation of protocol activity
  • Flexibility enter the symbols for IR and DR values
  • Detail view provides a seamless view of decoded data along with waveforms
  • Search helps in easily locating the specific state in hundreds of decoded packets of data
  • Filter features help only viewing the desired state
  • Documentation by exporting data in CSV and TXT file format
  • Report Generation

JTAG Protocol Decode Software offers protocol decoding as specified in the JTAG specification. PGY-JTAG Protocol decode software runs in Tektronix Oscilloscope and provides measurements for protocol decode at the click of a button. This allows engineers to quickly check for JTAG compliance and flexibility to debug the failure. In addition to this, engineers can decode the command and response of JTAG to debug the communication. PGY-JTAG takes advantage of the digital channels of MSO and provides the decoding of JTAG data lines.
