USB 2.0 Protocol Decode Software Datasheet

Key features

  • Decodes the low-speed, full-speed, and high-speed USB 2.0 signals for easy understanding of protocol between host and device
  • Links the protocol content to the physical layer signal in the oscilloscope for easy understanding of the electrical characteristics of the protocol

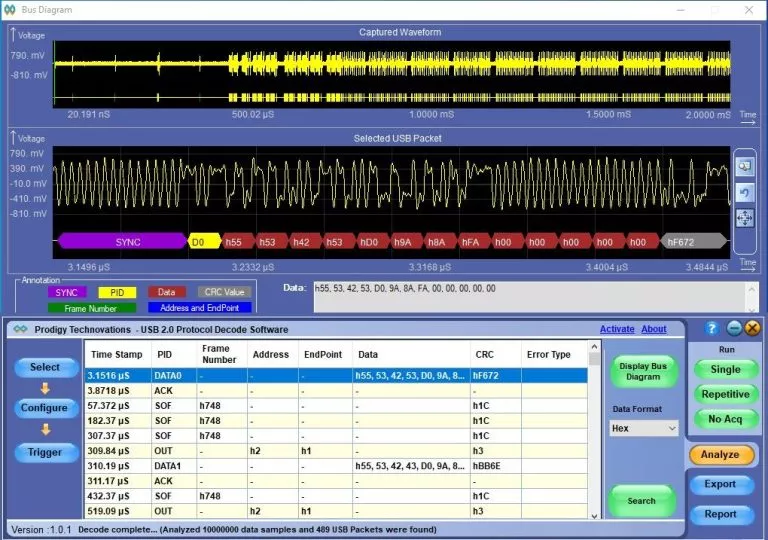

  • Overlays the protocol data on the analog waveform in a bus diagram wind
  • The USB packet selected in the decode table is zoomed in the bus diagram for easy analysis of the electrical characteristics of the USB packet
  • Color coding of protocol content for easy analysis
  • Search capabilities to locate unique events in thousands of protocol data
  • Ability to view the decoded protocol data in various formats such as hexadecimal, decimal, binary, octal, and ASCII.
  • Ability to store the USB protocol data in CSV and txt format
  • Utilities such as Zoom, undo, and Fit screen helps in debugging while correlating the protocol data to the waveform
  • Export and Report generation features make sharing and archival of protocol data a trivial activity.
  • Supports wfm and isf file formats for offline analysis

The PGY-USB USB2.0 Protocol Decode Software offers low speed, full speed, and high-speed protocol decoding of the data acquired by Tektronix Windows-based oscilloscopes. With PGY-USB engineers can debug the USB2.0 physical and protocol layer problems using Tektronix Windows-based oscilloscopes such as the TDS7000B, DPO7000B, DPO/DSA/MSO70000 oscilloscope series.

Seamless Integration with Oscilloscope

PGY-USB software integrates with Tektronix oscilloscopes offering to set up the triggering on USB protocol content using the serial trigger in an oscilloscope. PGY-USB runs inside the Tektronix oscilloscopes and directly decodes the USB signal and displays it in a bus diagram, a protocol decode table, and links the decoded data to the electrical signal in the oscilloscopes.

Productivity Improvement

To improve productivity, PGY-USB2.0 offers various debug tools such as search, zoom, and color-coding of USB packets. To share and archive the data, PGY-USB2.0 offers Export and Report generation capability.

Key Specifications
