Prodigy Technovations announces industry-first AC/DC electrical validation solution for SD Card and eMMC Devices



Prodigy Technovations Pvt. Ltd, a Bangalore-based company, introduces its PGY-SSM-EV-Tester SD, eMMC AC/DC Electrical Validation Tester for electrical characterization of SD card for UHS-I and eMMC for HS400 (eMMC5.1) specification. This innovative solution enables validation engineers to test the SD card and eMMC devices by the click of a button for different operating modes and characterizes 100’s of electrical and timing specifications saving significant validation time.

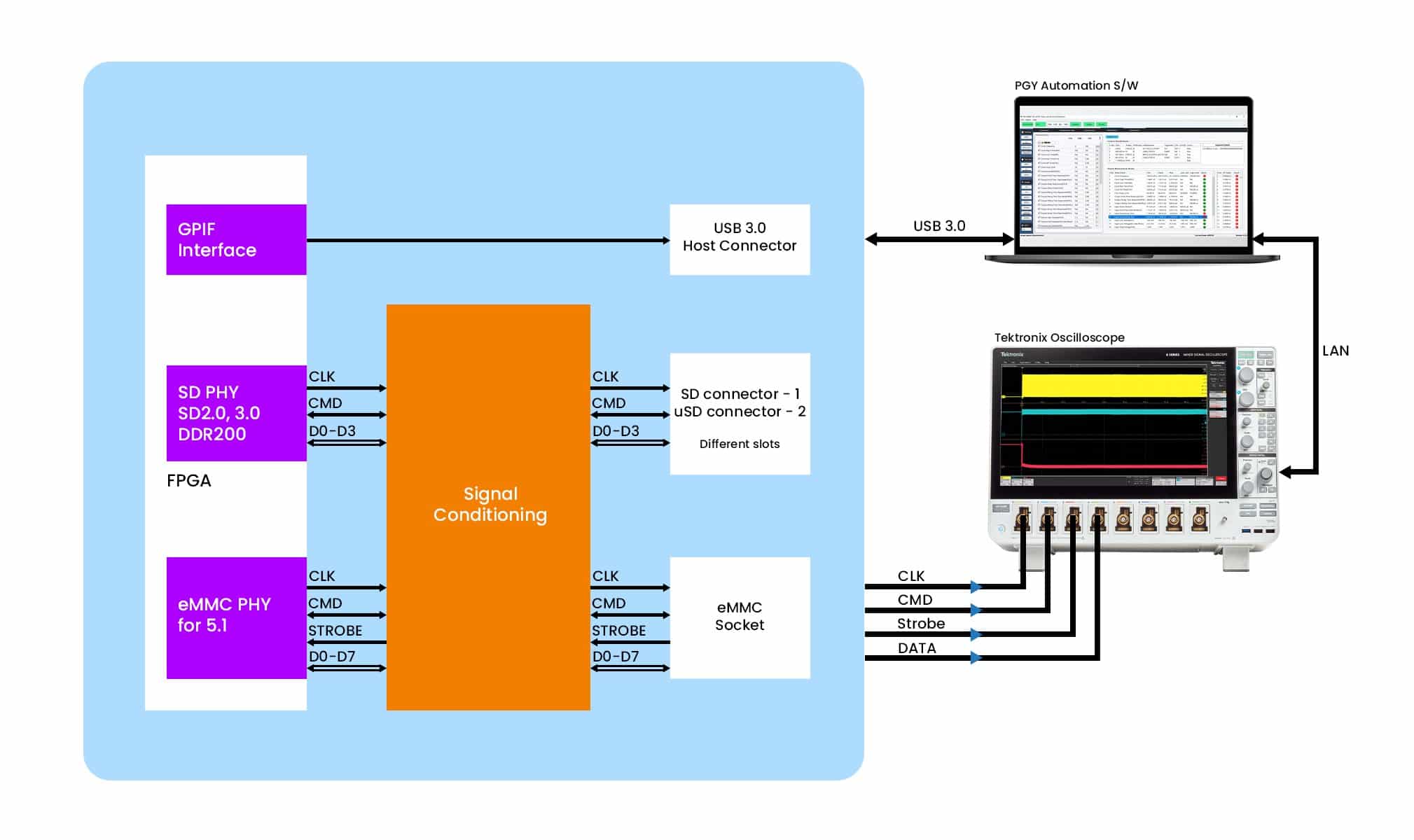

PGY-SSM EV Block Diagram



PGY-SSM-EV-Tester Setup

PGY-SSM-EV-Tester provides the flexibility to select an SD card, microSD card, or eMMC device and its operating modes for testing purposes. PGY-SSM-EV-Tester allows the user to place these devices in different modes and send read and write commands. PGY-SSM-EV-Tester software communicates with an oscilloscope to acquire the clock, command, strobe, and data signals over an ethernet interface. The software analyzes the oscilloscope-acquired data for AC and DC characteristics of SD cards and eMMC devices.

PGY-SSM-EV-Tester makes 100s of measurement for SD card and eMMC devices and also checks for limits specified in the standards document. PGY-SSM-EV-Tester allows the test engineer to write different test cases. The tester allows flexibility to vary the time delay between clock and command signal and validate the boundary specifications.

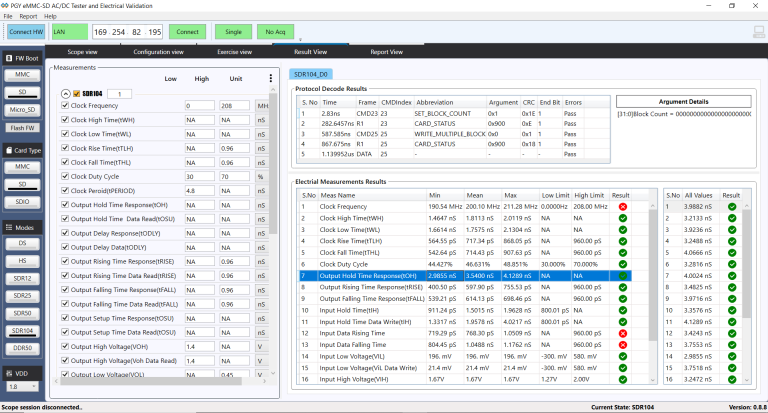

SD_SDR104_pass

PGY-SSM-EV-Tester Software

Key Features of PGY-SSM-EV-Tester SD and MMC AC/DC electrical measurement solution

  • Supports eMMC 4.41, 4.51, 5.0, 5.1 and SD card 2.0/3.0 (UHS-I) Specifications
  • Supports host controller for eMMC and SD card and flexibility to place devices in operating modes
  • Exerciser capability to write different test cases and inject the traffic to devices
  • Controls the eMMC and SD card host controller and oscilloscope signal acquisition for seamless measurement analysis
  • Provides all AC/DC measurements and generates a detailed report

For product information visit: https://prodigytechno.com/device/sd-emmc-ac-dc-tester/

Pricing, and availability: PGY-SSM-EV-Tester is now orderable. For Evaluation and Pricing, write to contact@prodigytechno.com

About Prodigy Technovations

Prodigy Technovations Pvt ltd is the leading provider of innovative protocol analysis and exerciser solutions for mainstream and emerging technologies such as PCIeUFS4eMMCSDSDIOUHS-III3CRFFE, and SPMI. We also provide Protocol Decode and PHY layer testing solutions on Test & Measurements equipment. The company’s ongoing efforts include the successful implementation of innovative and comprehensive Protocol Analysis solutions using the latest hardware technologies.

Contact:
Godfree Coelho
Godfree.coelho@prodigytechno.com
+91 80 4212 6100
