PCIe Low Power Side Band Signal Analyzer

The PGY-PCIeLP-SBA PCIe Low Power Side Band Signal Analyzer that measures sideband signals timing measurements and reports failure during the low power entry and exist time over long period of time enabling test engineers test and debug the M.2 SSD devices over different operation conditions.

PGY-PCIeLP-SBA monitors CLKREQ, REFCLK, PERSET and PWR signals of the M.2 interface during the different operating conditions. It provides timing measurement of these signals as per PCIe and M.2 interface specification documents. User can also set hardware-based trigger on specific timing measurement failure and get notified during the long duration automated test environment. User interface displays timing diagram with abstract view of the 100MHz Ref Clk condition, the low power state, restart, power recycle and power on state of the during while running the test cases.

PGY-PCIeLP-SBA has M.2 extender board with access to all side band signals which can be connected to PCIe Low Power Side Band Signal Analyzer. The software runs in windows PC enables the configuration of Analyzer for measurements and trigger conditions. It continuously plots the timing waveforms and updates timing measurements summary statistical and detail information.

Key features

Low-Cost Logic Analyzer with continuous streaming capability to monitor sideband signals
Plots the timing waveforms of PWR, CLKREQ, PERSET and REFCLK
- Power-ON State
- Restart
- Low power entry and exit from and to L0 State
Measures the timing parameters

Measurement Parameter	Description
TCRH OFF	CLQREQ# de-asserted high to clock parked
TCRL ON	CLQREQ# asserted low to clock active
TPVGL	Power Valid to PERST# input active
TPERST#CLK	REFCLK stable before PERST# deassertion
TPERST	Assertion time of PERST#

Reports timing parameter failure
Trigger on Timing parameter failure
Low Latency report support to overwrite T-CRON parameter
Report Generation

Configuration Panel

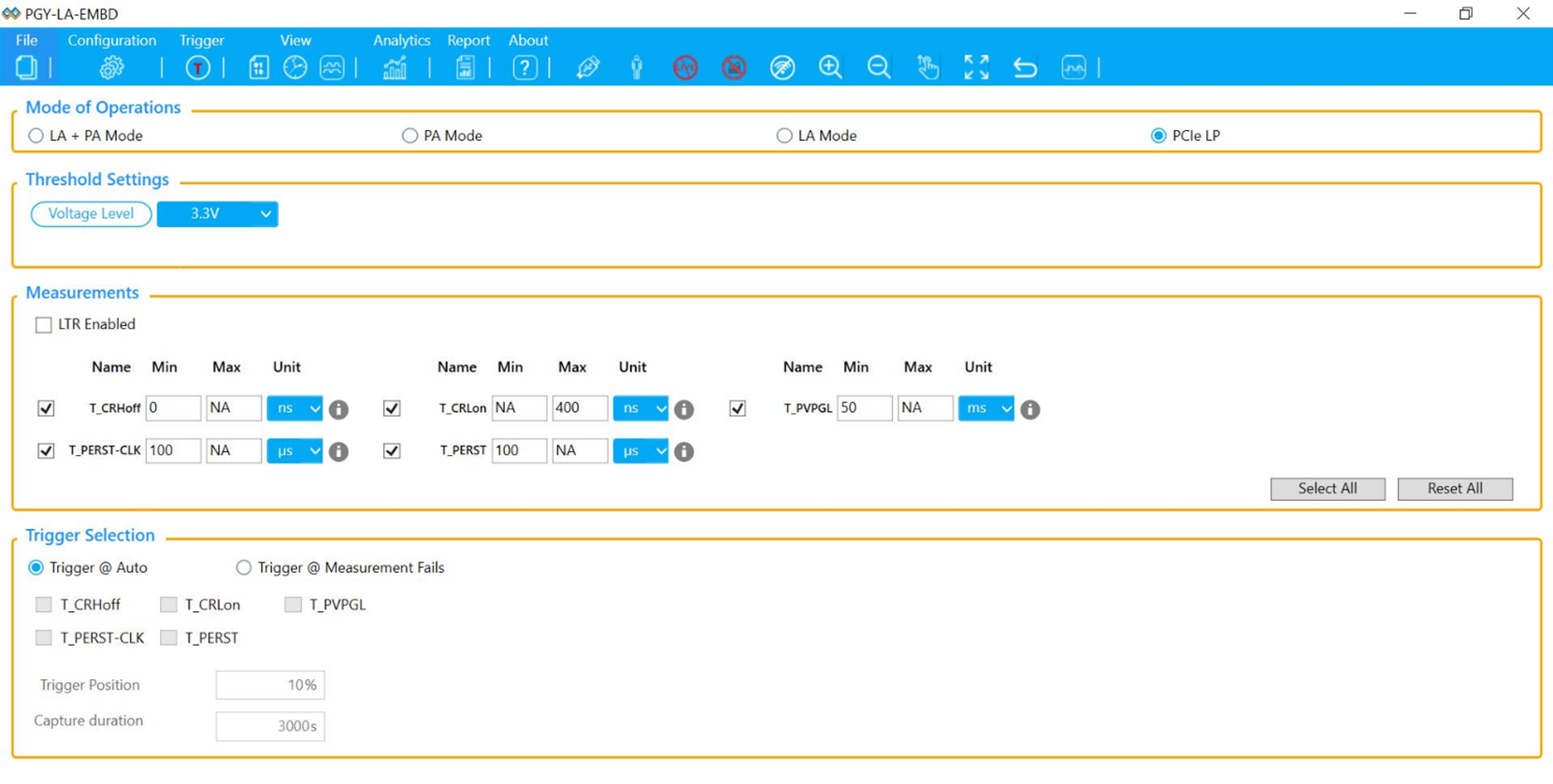

Configuration allows the users to easily select the timing parameters to be measured and set the trigger on any of this timing parameter failure. User can decide the duration of the capture in time (it can be few hours) or manually can stop the analysis. Pre and post trigger selection gives the option to view the data around the trigger condition.

Result Panel

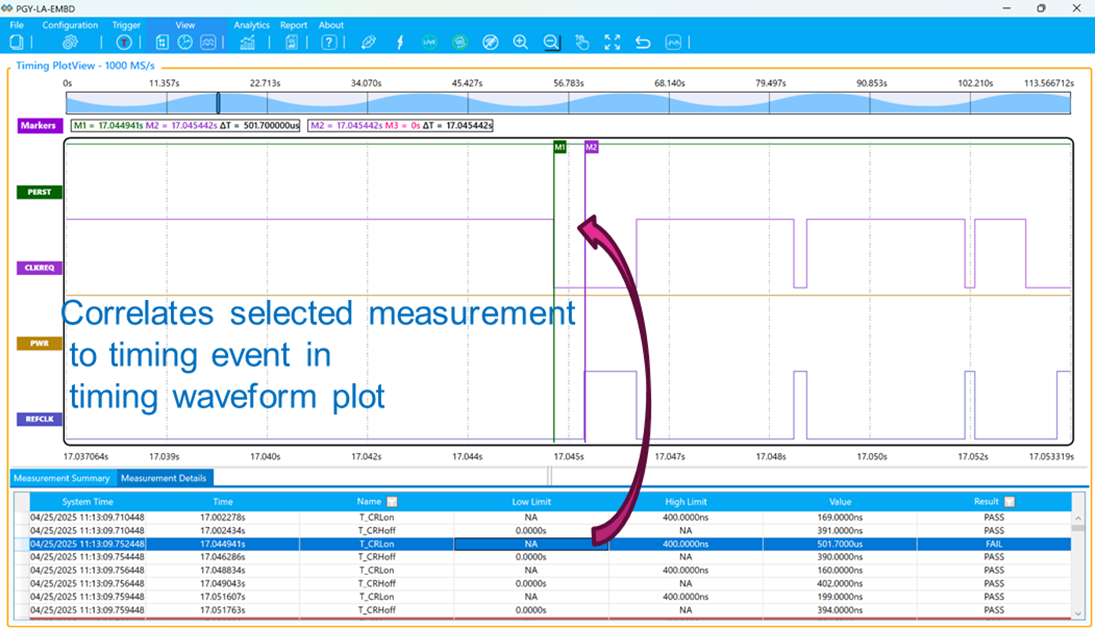

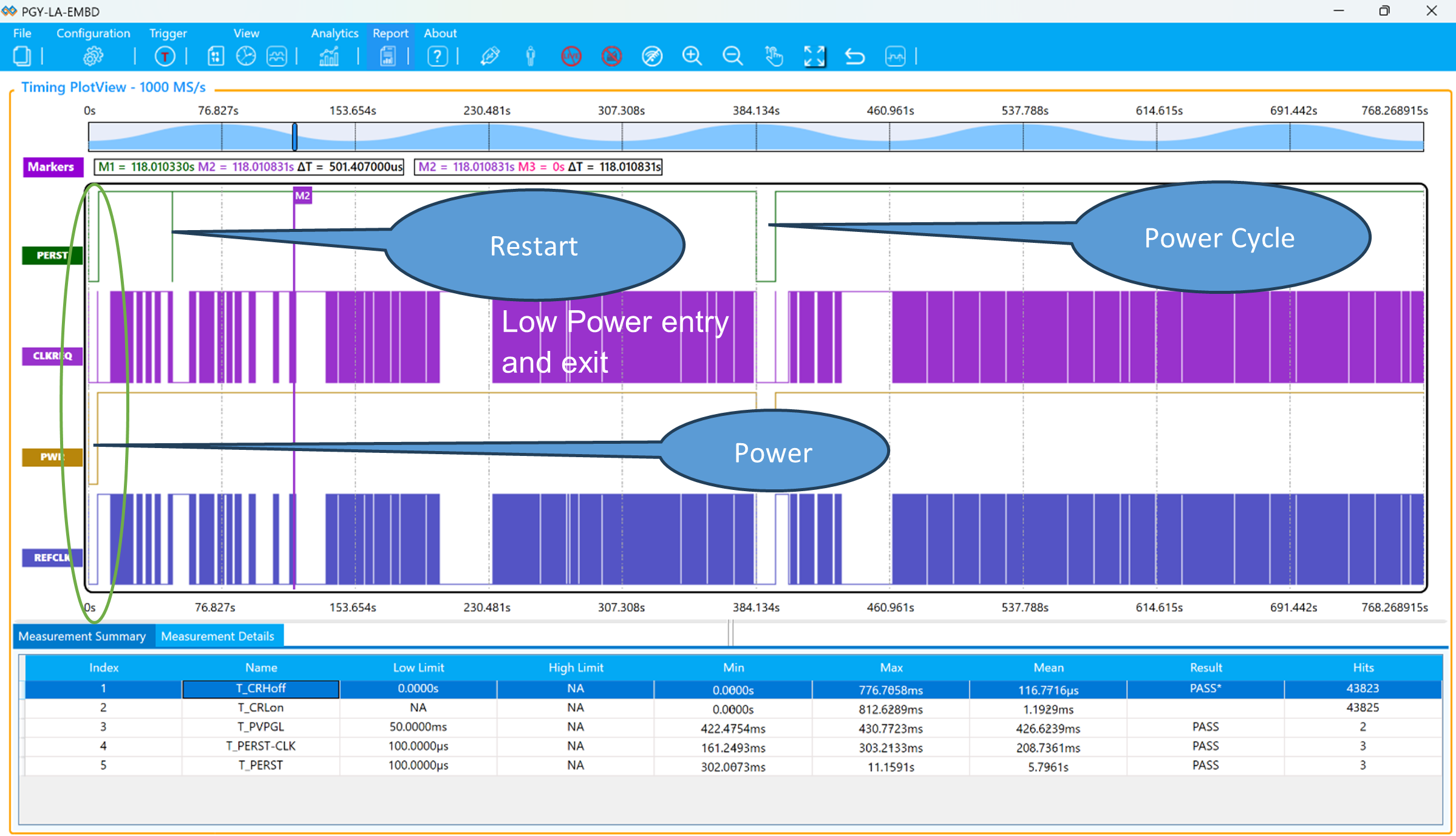

The applicable timing measurements for each event is measured and displayed in the software along with timing waveforms. The timing plot display PWR, CLKREQ, PERSET and REFCLK. The REFCLK is plotted at abstract layer, whenever it changes the state to 100MHz as displayed as high state and off state is displayed in low state. The acquisition duration is limited by the user need. The acquired data is continuously streamed to host computer storage system.
