Debugging eMMC Boot Failures: Capturing & Analyzing Boot Data with PGY-SSM
Embedded systems rely on a flawless boot sequence from their eMMC storage to load firmware and hand off control to application code. Yet misconfigured partitions, corrupted boot data, or unexpected eMMC responses can derail this process, leading to silent failures that are difficult to diagnose with standard tools.
With the PGY-SSM SD/SDIO/eMMC Protocol Analyzer, you can capture the entire boot interaction in real time, pinpoint exactly where things go wrong, and visualize key protocol events all without interrupting the device under test.
Why eMMC Boot Failures Are Hard to Debug
- Low-level communication: The boot process uses a series of commands (CMD0, CMD1, CMD6, CMD16, CMD17, etc.) and register exchanges (CSD, CID, EXT_CSD) before any filesystem is mounted.
- Transient errors: A single erroneous response or CRC failure early in the boot sequence can prevent firmware from loading, but standard logic analyzers often miss these fleeting mis-transactions.
- Complex modes: Modern eMMC devices switch between modes (HS400, DDR52, HS200) during boot. Verifying correct initialization requires both timing and content validation.
Key Capabilities of PGY-SSM for Boot Debugging
- Continuous, long-duration capture (up to 30 GB): Never miss an elusive boot event, even if the failure occurs after repeated reset cycles .
- Protocol-aware triggers: Set simple or sequential triggers on specific commands, responses or CRC errors (e.g., trigger on CMD1 with a wrong OCR response) to isolate the exact failure point .

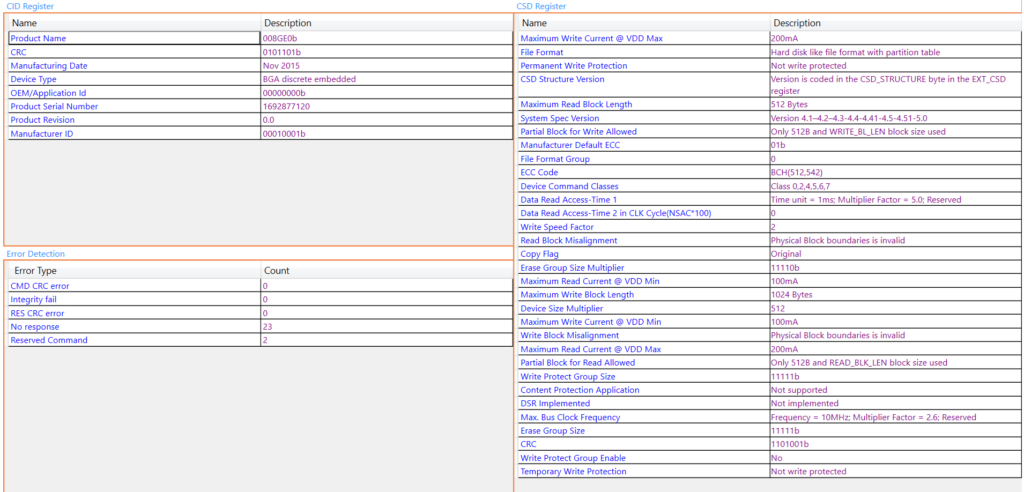

- Real-time Boot Data decoding: View decoded boot-partition commands and register reads (CSD, CID, EXT_CSD) as they happen, without manual post-processing .
- Boot-sequence selection: Configure the analyzer to also include boot data as sent by the device on power up.
- Analytics Dashboard: Visualize command frequency, response times, and error counts over the capture period spotting anomalous patterns that point to configuration or timing issues .
Workflow: Capturing & Analyzing eMMC Boot Data
- Setup & Boot-Mode Selection
- Launch the PGY-SSM software and select Live Capture.
- Under Current Target Settings, set Card Type to eMMC and enable Boot Sequence mode .
- Choose the probe type and connect CLK, CMD, D0–D7 (and strobe for eMMC 5.x) to the analyzer.
Configure Triggers
- Use Simple Trigger to catch a specific boot command (e.g., CMD1).
- For deeper analysis, choose Sequential Trigger: for example, trigger on CMD0 → CMD1 → CMD6 to detect exactly which step fails .
Run & Capture
- Click RUN. The analyzer streams all protocol activity to the host PC’s disk, capturing both commands and data bursts continuously .
- If the failure occurs, the trigger starts capture at the precise moment—no need to sift through hours of idle traffic.
Live Decoding & Inspection

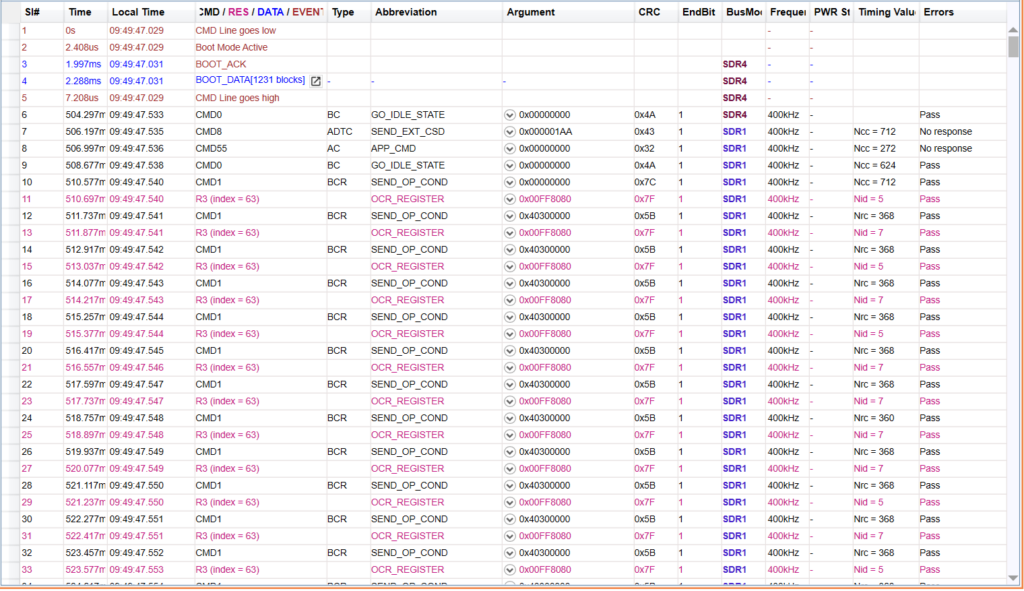

- As data arrives, the Analyze panel shows a time-stamped, color-coded decode listing.
- Drill into any packet to inspect arguments, CRC status, and register contents.
Analytics & Visualization
- Switch to the Analytics view to see histograms of command indices, response latencies, and any CRC-error spikes across the boot sequence.
- Identify outliers such as repeated busy-time spikes on CMD17 that may indicate device timing mismatches.
Report Generation
- Export a CSV report of the entire boot session (with optional data inclusion) for offline review or sharing with firmware teams .
Real-World Impact
By combining deep protocol-aware triggers, real-time decoding, and long-duration capture, the PGY-SSM empowers engineers to:
- Quickly isolate the exact phase where boot initialization fails whether it’s a misread EXT_CSD field or a CRC error on the initial CMD0.
- Validate mode switches (e.g., entering HS400) by comparing actual register values against expected JEDEC specs.
Accelerate firmware debug by providing crystal-clear protocol logs, eliminating guesswork.
Conclusion
Debugging eMMC boot failures no longer has to be a shot in the dark. With PGY-SSM’s targeted capture, powerful triggers, and intuitive analytics, you can trace every boot-phase transaction in real time and get your embedded system up and running with confidence.
