PGY-UFS4.0-PA, UFS Protocol Analyzer is the industry-first working and tested UFS4.0 Protocol Analyzer. It offers protocol data capture and debugging of data across MPHY, UniPro, and UFS protocol layers. It allows for instantaneous decoding of UFS, UniPro, and MPHY layers with the flexibility to correlate decoded data across these protocol layers. PGY-UFS4.0-PA supports PWMG1 to HSG5B data rates and two TX, and two RX lane decode. The active probe has minimum electrical loading on the device under test (DUT) and captures protocol data without affecting the performance of DUT. PGY-UFS4.0- PA Protocol Analyzer supports two-lane data. Comprehensive on the fly decoding of UniPro & UFS data enables validation of communication between UFS host and device.

PGY-UFS4.0-PA Protocol Analyzer allows Design and Test Engineers to obtain deep insight into UFS host and device communication. MPHY/UniPRO/UFS packet-based triggering allows specific protocol data capture and analysis. PGY-UFS Protocol analyzer instantaneously provides decoding of UFS, UniPro, and MPHY layers with a correlation to MPHY, UniPro, and UFS layers.

100BASE-T1 Automotive Ethernet Protocol Analyzer Datasheet

Key features

  • Protocol decode and Analysis of 100BASE-T1 Bus.
  • Passive tapping allows a non-intrusive method of monitoring the 100BASE-T1 Bus.
  • Powerful multi-layer protocol layer trigger capabilities enable capturing data at specific events.
  • Decoding of TC10 Sleep and Wakeup events of master and slave.
  • Continuous streaming of protocol activity SSD/HDD enables long-duration capture of protocol data.
  • Simultaneously monitoring of 100BASE-T1 and MDIO/MDC protocol activity.
  • Live protocol decode capabilities allow you to view the protocol information while the test case actively running in DUT.
  • The analytics feature provides statistical information on protocol packets.
  • FCS error report helps in monitoring the protocol errors.
  • The simplified Protocol Listing view with search and filter capabilities is easy to use.
  • Software and firmware are fields upgradable
  • Report generation.

Automotive Ethernet Analyzer Test Setup

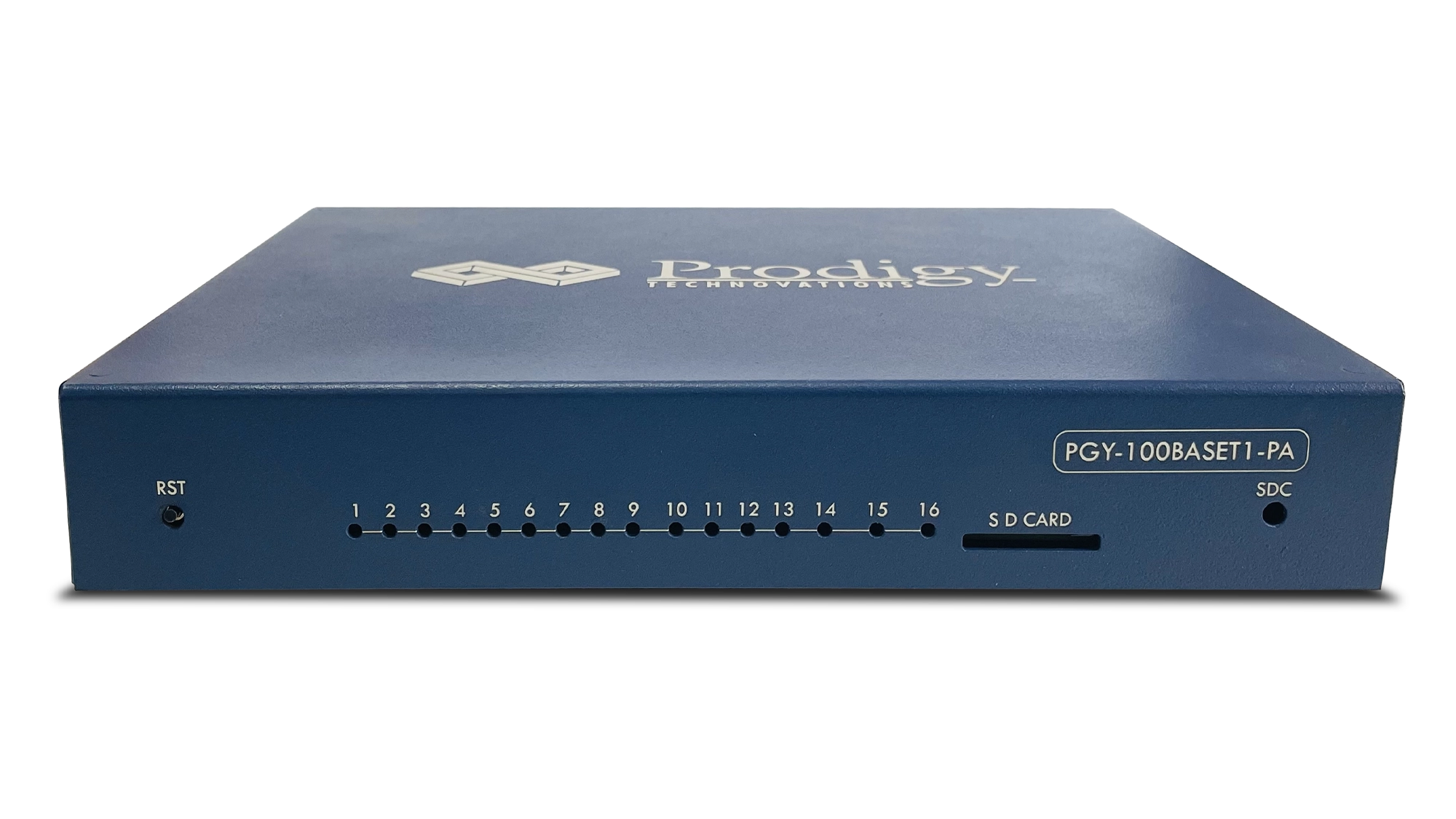

PGY-100BASE-T1-PA sniffs the automotive Ethernet bus and monitors the protocol activity between the Master and Slave ECU. Simultaneously monitoring MDIO and MDC lines and correlating with 100BASE-T1 protocol activity helps easy debug the design problems. The Automotive Ethernet Analyzer unit will extract bit values from full-duplex PAM3 signal using Prodigy’s patent-pending solution.  The host computer manages the operation of the analyzer unit, and stores and analyzes the acquired data. Passive tapping of the 100BASE-T1 bus ensures the least latency in acquiring the data making this solution an industry-first Passive TAP  patent-pending solution.

Powerful Trigger capabilities

PGY-100BASE-T1-PA  supports the industry’s best protocol layer trigger capabilities. Users can define trigger conditions from Layer 2 to layer 7.  Advanced multi-layer trigger featured with  If-then-else if allows the design engineer to monitor more than one trigger condition at the same time.

Trigger Conditions

Stack Protocol Analyzer Packet Type
Layer 2 Ethernet type
Mac Destination Address
Mac Source Address
Layer 3 IPv4
Source IP Address
Destination IP Address
TTL
Checksum
Fragment Offset
DF
MF
Total Length
Identification
TOS
Layer 3 IPv6
Destination IP Address
Source IP Address
Payload length
HOP Limit
Traffic Class
Flow Label
Layer 3 ARP
Target Protocol Address
Source Protocol Address
Target Hardware Address
Source Hardware Address
Operation
Ready to Transfer
Layer 4 TCP
Source Port
Destination Port
Sequence number
ACK
Data off
Window size
Check sum
URG
Layer 4 UDP
Source Port
Length
Checksum
Layer 4 ICMP
Rest of Header
Type
Code
Checksum
Layer 5-7 Some IP
Service ID
Length
Client ID
Session ID
Message ID
Protocol Version
Interface Version
Message Type
Return Code
Payload

Protocol Analysis

Ethernet is one of the oldest protocols widely used protocol for many applications. Design engineers are used to viewing and analyzing the protocol data in a specific format. PGY-100BASE-T1-PA Protocol Analyzer software maintains the traditional views and provides advanced analysis capabilities. Live decoding capability provides decoding with any FCS error packets.

Analytics of Protocol Data

Analyzing Protocol data to identify the design issues is a challenging task in millions of protocol packets.

PGY-100BASE-T1-PA provides statistical information about each layer packet count and error packets. This simplifies the process of isolating the errors to specific protocol packets or protocol layers. Powerful expression-based search capabilities quickly help in locating packets of interest in the acquired entire protocol data for further analysis.

Products Specification

Ports input

Four 100Base-T1 Ports

Upgrade Two additional 100Base-T1 Port

MDIO/MDC Port

Two CAN Ports

Protocol Analysis

Layer 2 to Layer 7 Automotive Ethernet protocol Analysis

MDIO/MDC Protocol Decode

Upgradable to CAN Protocol Analysis

Protocol Views

Protocol Listing of Layer 2

Decoding of Protocol layer Packet view

Tree view

Line training view

Analytics

Event Monitoring

FCS errors

Search and Filter

Boolean expression based search and filter capabilities

Capabilities Export of

Results

CSV or TXT report generation

Host Computer System requirements

Windows 7/8.0/8.1/10 64bit operating system. It requires RAM of 16GB but the product would give a faster response for a 32GB. The maximum storage capacity of 1GB should be available in the hard disk drive. Users can use more storage based on trace storage requirements. The Display resolution of the monitor is 1024x768 host Computer should support a USB 3.0 Interface

Key Specifications
