UFS 4.0 Protocol Analyzer





PGY-UFS4.0-PA, UFS Protocol Analyzer is the industry-first working and tested UFS4.0 Protocol Analyzer. It offers protocol data capture and debugging of data across MPHY, UniPro, and UFS protocol layers. It allows for instantaneous decoding of UFS, UniPro, and MPHY layers with the flexibility to correlate decoded data across these protocol layers. PGY-UFS4.0-PA supports PWMG1 to HSG5B data rates and two TX, and two RX lane decode. The active probe has minimum electrical loading on the device under test (DUT) and captures protocol data without affecting the performance of DUT. PGY-UFS4.0- PA Protocol Analyzer supports two-lane data. Comprehensive on the fly decoding of UniPro & UFS data enables validation of communication between UFS host and device.

PGY-UFS4.0-PA Protocol Analyzer allows Design and Test Engineers to obtain deep insight into UFS host and device communication. MPHY/UniPRO/UFS packet-based triggering allows specific protocol data capture and analysis. PGY-UFS Protocol analyzer instantaneously provides decoding of UFS, UniPro, and MPHY layers with a correlation to MPHY, UniPro, and UFS layers.

100Base-T1 Automotive Ethernet Protocol Decode Software Datasheet

Key features

  • Decodes the PAM3 encoded 100BaseT1 signals
  • Decodes Send_N mode packets without any training sequence
  • Validated FCS and reported error packets in red color
  • Display the time stamp, packet type, IP source and destination address, and decoding of the payload.
  • Detail view correlates the decoded packets with waveform using Bus Diagram
  • Separately display the Master and Slave packets
  • Export the decoded data in CSV or TXT file format
  • Report Generation
100Base-T1 Automotive Ethernet Protocol Decode Software

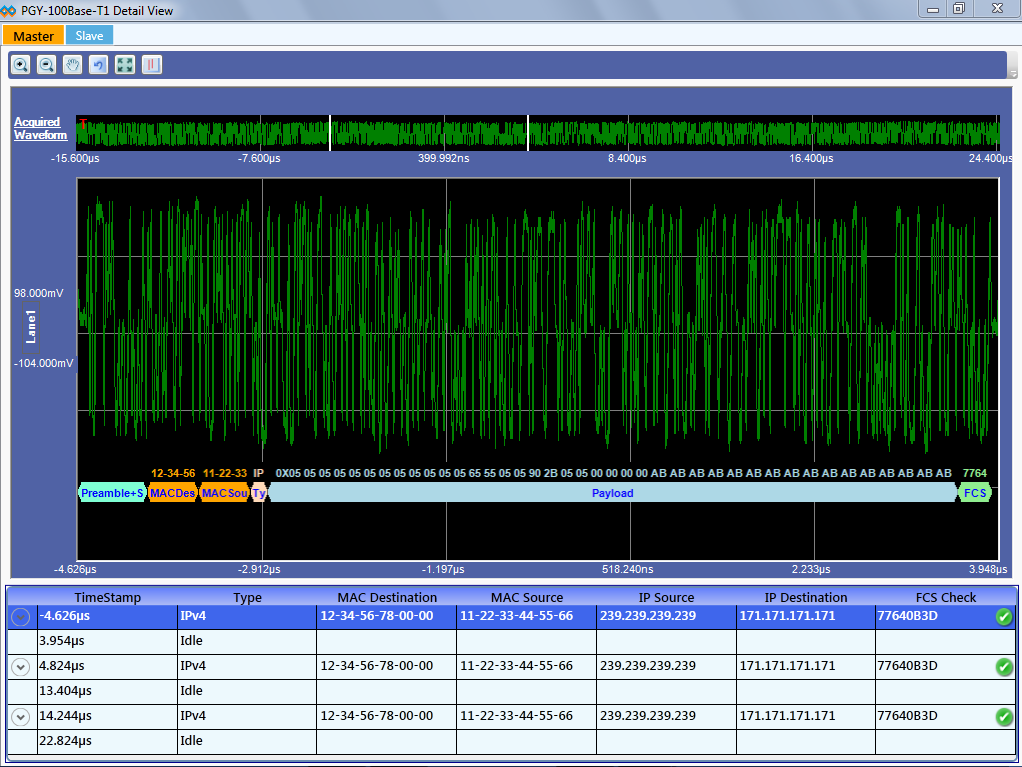

Detail View

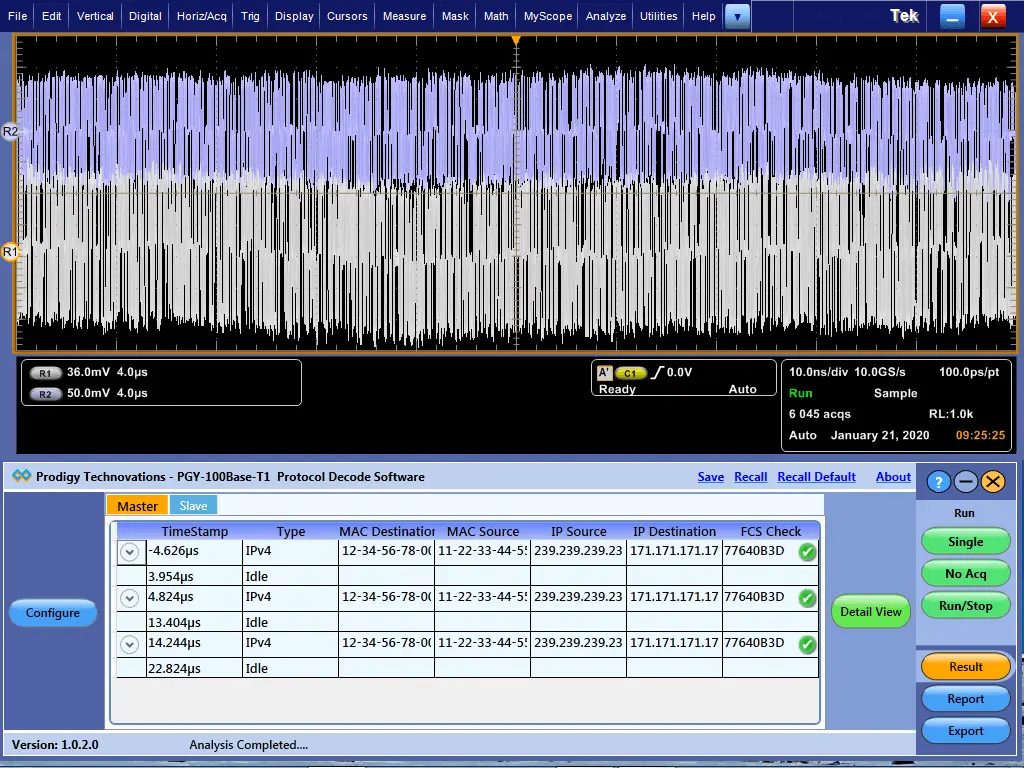

Users can now feed the output of the directional coupler to Tektronix Oscilloscope for time-domain view. PGY-100BaseT1 protocol decode software runs in Tektronix Oscilloscope, easily decodes PAM3 encoded 100BaseT1 signal. This enables the engineers to quickly understand the protocol activity between the Master and Slave ECU.

100Base-T1 Automotive Ethernet Protocol Decode Software
Detail view correlates waveform

The solution helps in debugging the protocol layer issues and correlating them to the physical layer resulting reduction in debugging time.

Test Setup

Key Specifications

test-setup 100 base t1
Typical 100BaseT1 Protocol Decode test setup
